The smart solution for
heat-conducting stainless steel corrugated pipes
Hauptinhalt
The smart solution for
heat-conducting stainless steel
corrugated pipes
With our TERRA+ system, we are launching a completely new product on the market: pre-insulated, high-temperature-resistant stainless steel corrugated pipes for air-to-water heat pumps. Additional lengths of 25–30 cm, depending on the dimensions of the corrugated pipes, ensure maximum system flexibility. Thanks to the well-known double seal technology of the fittings, you also benefit from quick and secure installation. No additional tools, such as press pliers or similar, are required.

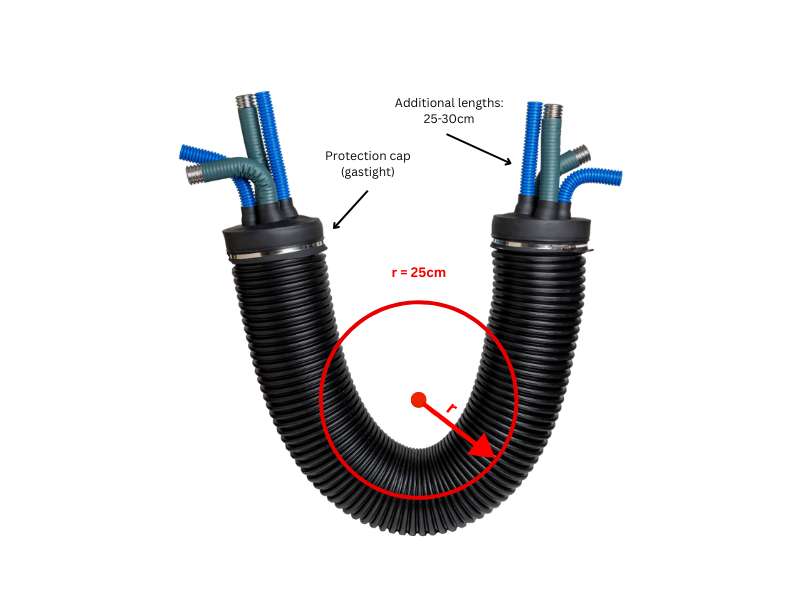

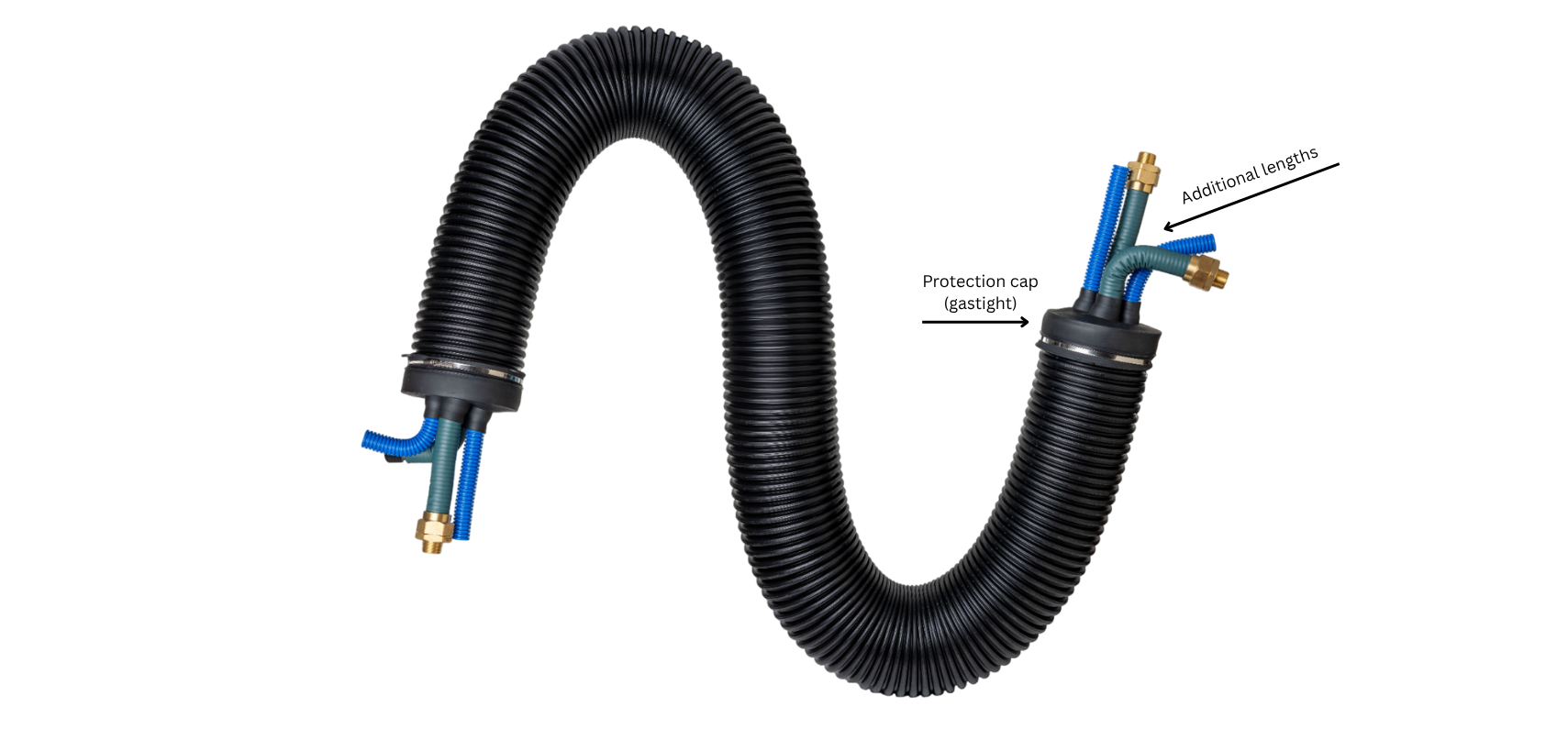

MAXIMum FLEXIBILITY
THANKS TO EXTENDED CONNECTION PIPES
Thanks to the additional lengths (L) for corrugated and electrical conduits of 25cm (DN25 & DN32) to 30cm (DN40 & DN50) on both sides, connection which are angled and diffucult to access can be reached easily and without complication. Simply bend the last few
centimetres by hand and benefit from the maximum flexibility of the corrugated stainless steel pipes.

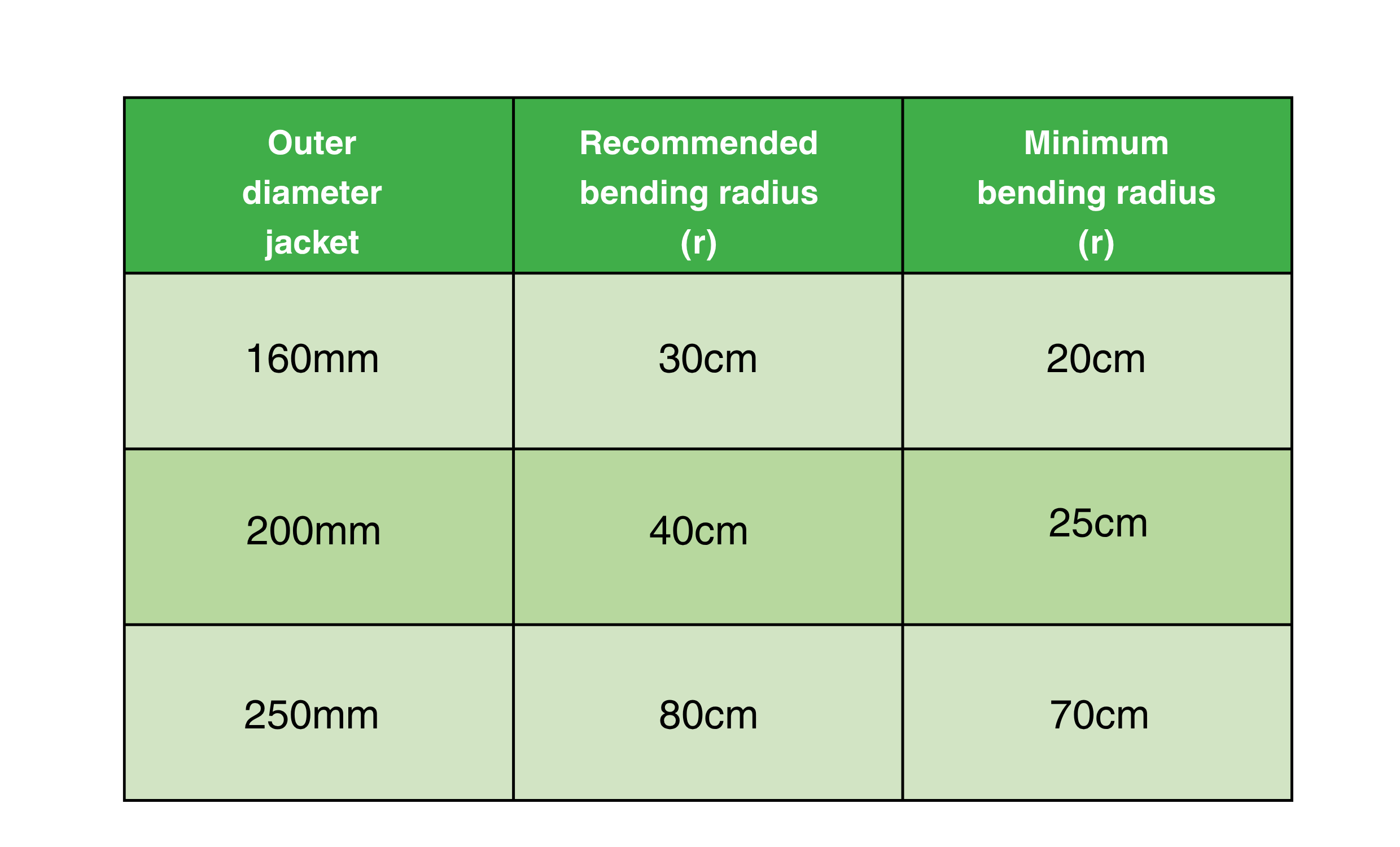

Minimum bending radii

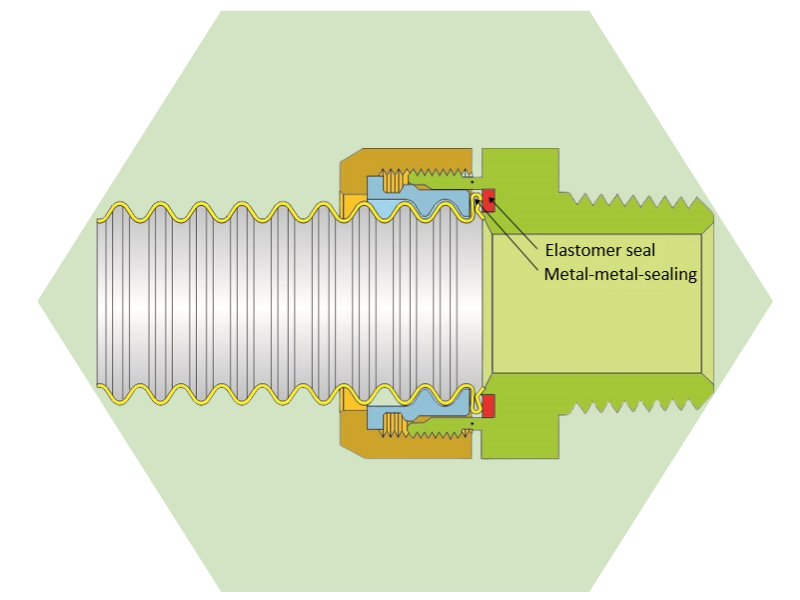

MAXIMum tightness
through tried-and-tested double sealing technology
Our tried-and-tested fittings from the BOAGAS product range ensure the same sealing tightness that you have come to expect also when they are used with the TERRA+ system. The easy attachment and screwing of the conneciton saves valuable time and enables you to complete mor eprojects in less time.

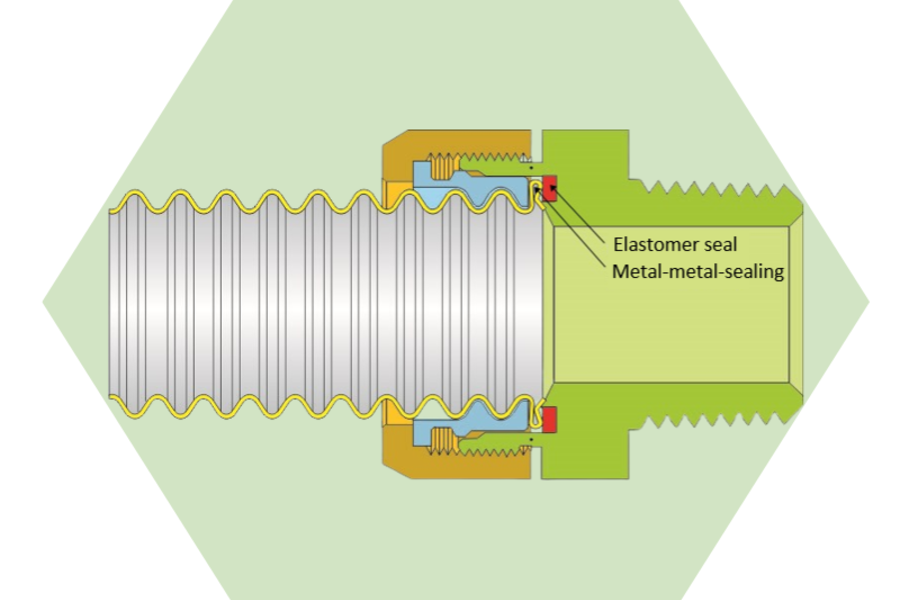

The patented double sealing technology and correctly-completed screw connection makes dripping connection points a thing of the past. NO OTHER SPECIAL TOOLS ARE REQUIRED.

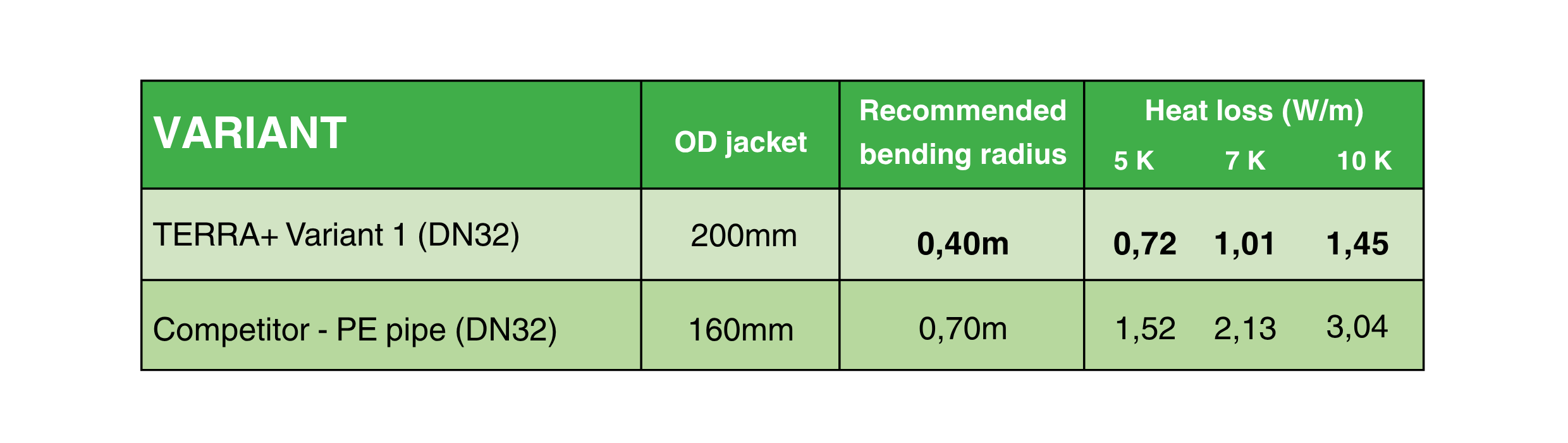

MAXImum energy savings
for every application
The TERRA+ product range fulfils all the requirements of the German Buildings Energy Act (GEG, formerly EnEV) and the Austrian ÖNORM H 5155 standard for heat distribution pipes.
